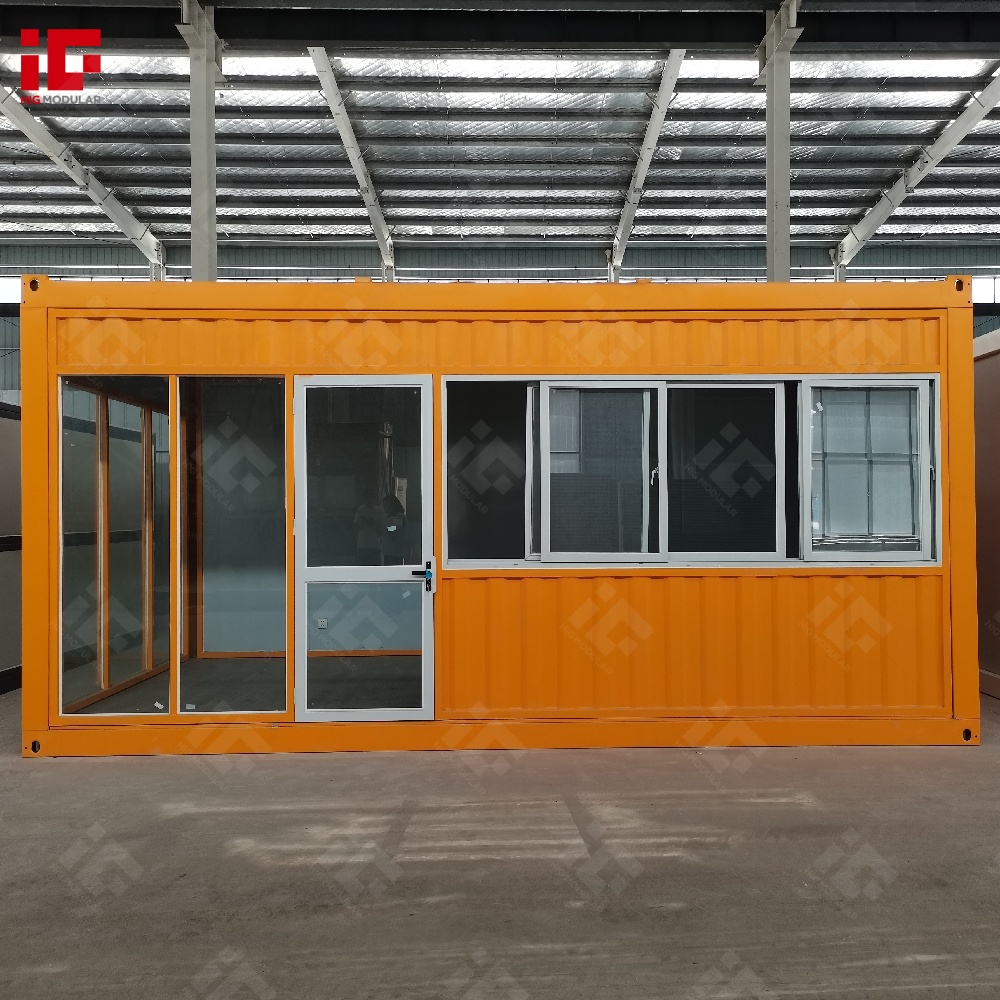

Low Cost Modern Mobile Container Store Or Temporary Office
This folding container house enjoy the freedom to relocate your home with ease – perfect for those who love to explore.
Folding Flat Pack Container House has both the strength of a Flat Pack Container House and can be folded like a folding Container House, which can be saving more transportation space. It is used in many temporary offices and temporary dormitories.
| Product Specifications | Folded Height | H=440mm 40HQ can load 10 sets |
| L*W*H(mm) | 5830mm*2500mm*2470mm Inner size: 5650mm*2320mm*2200mm |
|
| Roof Form | Flat Roof | |
| Number Of Layers | ≤2 layers | |
| Structure | Column | Specification 50mm*160mm Roller Beam Material Thickness 2.3mm Material Q235B |
| Roof Main Beam | Specification 50*160mm Roller Beam Material Thickness 2.3mm Material=Q235B |
|
| Roof Secondary Beam | Galvanized Cold Rolled Section Steel C Type Material Thickness=1.0mm 6 Pices Material Q235B |
|
| Ground Main Beam | Height 50*140mm Roller Beam Material Thickness 2.3mm Material=Q235B |
|
| Ground Secondary Beam | Galvanized Cold Rolled Section Steel C Type Material Thickness 1.5mm 9 Pices Material=Q235B |
|
| Bolt | 8.8 Class High-Strength Bolts, 6 | |
| Paint | Electrostatic spraying plastic powder baking varnish ≥80μm | |
| Roof | Roof Panel | EPS Color Steel Sandwich Panel Thickness=50mm Color White-Gray Free fall |
| Ground | Substrate | 18mm Fireproof Glass Magnesium Board |
| Wall | Insulation Cotton | 50mm Thickness Color Steel EPS Sandwich Panel Class B Fireproof |
| Color steel Plate | Panel Coler Streel Plate Thickness 0.4mm | |
| Door | Specification | Width×Height=840mm*1900mm |
| Material | Steel Door Concealed Lock |
|
| Window | Specification | 950mm*1100mm |
| Fram Material | Plastic Steel | |
| Glass | Single Layer Glass |
HIG HOUSE covers a series of products such as steel structure workshops, flat pack container house, modified shipping container house, detachable container house, folding container house, expandable container house, portable ion, installation, Services, and other one-stop solutions.
After 15 years of hard work by the company’s core team, it has obtained 46 invention patents and utility model patents.
We take the need of customers as the base, green safe, economical, and comfortable living experience as the root and development of the industry as the purpose.
