Z-Type Folding Container House

Sustainable Foldable Container House For Fast Assembly

Our Sustainable Foldable Container House is designed for fast assembly and easy transport. Built with eco-friendly materials, it’s the perfect solution for sustainable living on the go

  • Customizable:

    Available
  • MOQ:

    7 Units
  • Shipping Port:

    Shanghai
  • Place of Origin:

    China
  • Product Detail

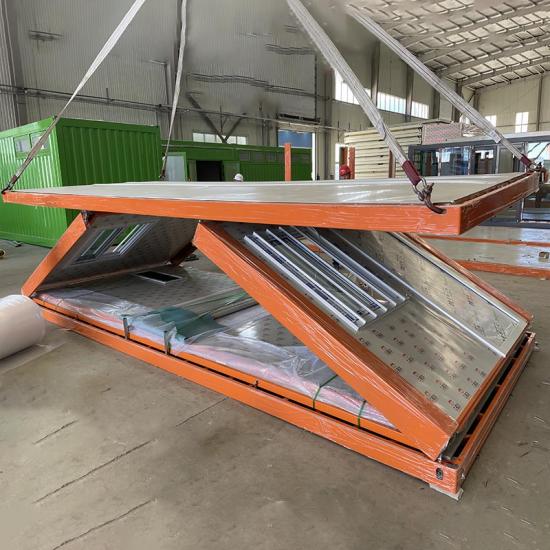

Sustainable Foldable Container House for Fast Assembly

This folding container embrace a minimalist lifestyle with efficient use of living space and storage options.

Embrace a minimalist lifestyle with efficient use of living space and storage options.



Sustainability: Our HIG HOUSE container house is made of high-quality, sustainable materials that reduce waste and carbon emissions, making it an eco-friendly choice for those looking to reduce their environmental impact.
Foldable Design:The container house is designed to be easily foldable, allowing for easy transportation and assembly in any location, without the need for heavy machinery or specialized equipment.
Fast Assembly: The container house can be assembled quickly and easily, with minimal labor and time requirements. This makes it an ideal choice for emergency housing, temporary shelters, or remote locations where traditional construction methods are not feasible.
Versatility: Our container house can be customized to suit a variety of needs, from single-family homes to multi-unit complexes, making it a versatile solution for any housing situation.

Modular design allows for easy expansion or connecting multiple units.

This folding container house modular design allows for easy expansion or connecting multiple units.

Product Specifications Folded Height  H=440mm 40HQ can load 10 sets
L*W*H(mm)  5830mm*2500mm*2470mm
 Inner size: 5650mm*2320mm*2200mm
Roof Form  Flat Roof
Number Of Layers  ≤2 layers
Structure Column  Specification 50mm*160mm
 Roller Beam
 Material Thickness 2.3mm
 Material Q235B
Roof Main Beam  Specification 50*160mm
 Roller Beam
 Material Thickness 2.3mm
 Material=Q235B
Roof Secondary Beam  Galvanized Cold Rolled Section Steel C Type
 Material Thickness=1.0mm
 6 Pices
 Material Q235B
Ground Main Beam  Height 50*140mm
 Roller Beam
 Material Thickness 2.3mm
 Material=Q235B
Ground Secondary Beam  Galvanized Cold Rolled Section Steel C Type
 Material Thickness 1.5mm
 9 Pices
 Material=Q235B
Bolt  8.8 Class High-Strength Bolts, 6
Paint  Electrostatic spraying plastic powder baking varnish   ≥80μm
Roof Roof Panel  EPS Color Steel Sandwich Panel
 Thickness=50mm
 Color White-Gray
 Free fall
Ground Substrate  18mm Fireproof Glass Magnesium Board
Wall Insulation Cotton  50mm Thickness Color Steel EPS Sandwich Panel
 Class B Fireproof
Color steel Plate  Panel Coler Streel Plate Thickness 0.4mm
Door Specification  Width×Height=840mm*1900mm
Material  Steel Door
 Concealed Lock
Window Specification  950mm*1100mm
Fram Material  Plastic Steel
Glass  Single Layer Glass



Folding Flat Pack Container

HIG HOUSE covers a series of products such as steel structure workshops, flat pack container house, modified shipping container house, detachable container house, folding container house, expandable container house, portable ion, installation, Services, and other one-stop solutions.


     After 15 years of hard work by the company’s core team, it has obtained 46 invention patents and utility model patents.

     We take the need of customers as the base, green safe, economical, and comfortable living experience as the root and development of the industry as the purpose.
